YD-FT200
Flame treatment machine
◆ Flame the surface of kinds of plastic materials
◆ Speed and flame are adjustable
◆ Customizable as special products

Product Details

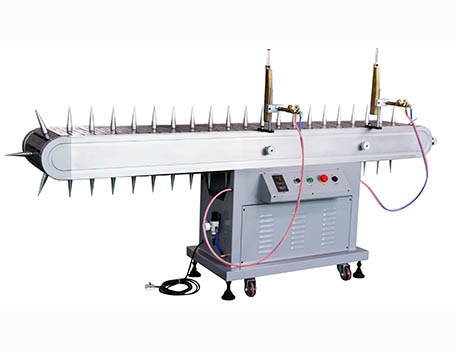

YD-FT200  Flame Treatment Machine

1, This machine is specially designed to flame the surface of plastic objects with kinds of materials.

2, Equipped with SUS304 stainless steel plates imported abroad and the motor, gearbox fromJapanto ensure the machine stable and durable.

3, Running space-type or continuous-type to make the burn intensity of surface can be adjusted under requisition.

4, Installed with two burners to ensure a high degree treatment.

5, We can customize machine according to the special products.


Specifications

Flame Treatment Product Size

Diameter

12mm-24mm

Height

25mm-250mm

Maximum Running Speed

3000pcs/hour

Power Consumption

120W

Compressed Air Pressure Requirement

4-6bar

Power Requirement

220V 1Phase 50Hz

Machine DimensionL×W×H

2480mm×550mm×1100mm

Total Weight

250kg

Click to download
